Huntsville research buildings add rooftop equipment often. Air handlers, chillers, exhaust fans, and lab support units all need a place to sit. That place is usually the roof. A structural engineer must check what the roof can hold before any of this equipment goes up. This matters even more in older research buildings. Their roof framing may not match the old drawings.

Reconstructing the Roof’s Existing Load Path Before Equipment Selection

A structural engineer starts with the original drawings. Then they check the drawings against what is really up there. Loads from rooftop equipment travel down through the roof. First the deck, then the joists or purlins. Next the beams, then the columns. Last, the load reaches the foundation. Each piece in that chain has a limit. The whole path only works if every piece can carry the new weight.

Older research buildings change a lot over the years. Past renovations may not show up on the drawings. Added units or patched framing may not be marked anywhere. A field visit lets the engineer check real member sizes. They can spot signs of stress or old repairs. This confirms the roof structure matches the paper record. Skipping this step means designing around facts that may no longer be true.

Separating Equipment Weight From Operational Forces

The weight on a spec sheet is just a starting point. A structural engineer needs to know what a unit weighs once it runs. Not just when it sits empty in a warehouse.

Operating fluids add weight. Shipping weight does not include them. Internal parts, like compressors or motors, can shift the weight to one side. Maintenance panels and walkways add extra loads in specific spots. Piping connections can push and pull on the frame during startup or shutdown. Vibration from moving parts creates loads that repeat over and over. A single static weight number will not capture any of this. All of these things need to go into the design. Not just the number on the nameplate.

Designing Dunnage That Reaches the Right Structural Members

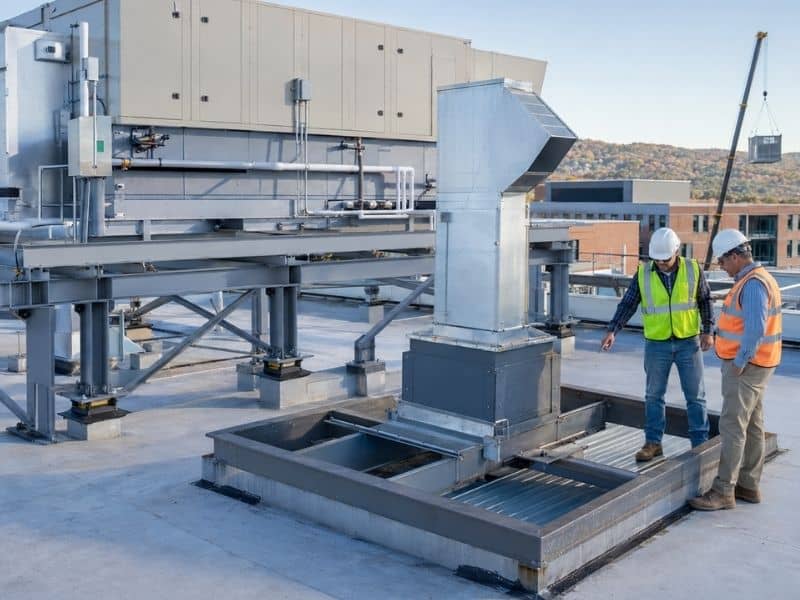

Dunnage is a steel framework built to carry equipment. It spreads the load to structural members that can take it. Dunnage might be steel beams, a raised curb, or a small custom frame.

Setting a heavy unit right on the roof deck is a common mistake. The deck carries roofing materials and foot traffic. It was not built for heavy point loads from a rooftop chiller or fan. Even existing roof framing may not have been sized for this kind of load. Dunnage carries the weight past the deck. It sends the load into beams or columns that were checked for it. Getting dunnage right takes real work. Someone has to trace the load path all the way down. They cannot just guess at it.

Framing Around New Exhaust and Utility Penetrations

Modernizing a research building almost always means new roof openings. Lab exhaust ducts need a path. So do process pipes, wiring, and other lines. Each one has to reach down into the building.

Every opening removes material from the roof. That material was doing a job before it got cut. A structural engineer checks the joists, deck sections, and other parts near a planned opening. They figure out what needs to go back in. This might mean framing around the opening. Or it might mean extra blocking or support nearby. A small opening can still weaken a part of the roof that once carried a lot.

Sequencing Rooftop Reinforcement Around Active Research Operations

Many research facilities cannot shut down for construction. Labs below the roof may run around the clock. That changes how the work gets planned.

Structural engineering helps set the order of work. Not just the final design. It can mean deciding when old equipment comes off. It can mean planning how loads get held during the swap. It can mean deciding where new supports go in first. Roof access, crane staging, and timing all depend on the building below. No two facilities follow the same steps. The labs, the roof layout, and the schedule never match from one project to the next.

Frequently Asked Questions

Can an old research roof support new equipment if the new unit has the same footprint?

Not always. A unit with the same footprint can still weigh more. It can have a different balance point or support layout. It may run under different conditions too. The roof framing and the new unit need a check together, not just a footprint match.

Does equipment weight include the liquids, filters, and attachments used during operation?

The weight listed by the maker may not cover the full unit once it runs. Fluids, filters, piping, and other parts can add real weight. This weight often does not show up on a basic spec sheet. A structural engineer works with the project team to check which parts count toward the design weight. Getting this number wrong at the start can throw off the whole load plan.

Why might rooftop equipment need independent steel dunnage?

Dunnage carries equipment loads to structural members that can support them. This beats resting the unit right on the roof deck. Dunnage can also span weak spots in the roof. It can add clearance for piping or repairs. It can also raise the unit to the right height for connections. Some units may sit fine on existing framing. Others need a support system built just for them.

Can lab exhaust openings go between roof framing members without a structural review?

The spot for an opening still needs a look from a structural engineer. This is true even if it seems to fall in a gap between beams. An opening can still affect the deck, bridging, or nearby supports. It can do this without touching a main beam at all. Cutting first and checking later can leave part of the roof holding more than it should.

When should structural work start on a research building upgrade?

Structural input works best early. This is while equipment size, weight, and support points can still change. Early review lets the design team compare a few placement options. This should happen before equipment gets ordered or put in. Waiting until after the order narrows the choices. It can force costly changes later on.
