As utility networks grow around Huntsville, Alabama, new pipeline routes often need to pass under active or old railroad corridors. These crossings need early planning. The pipeline route, the railroad property, and the construction method all have to work together from day one.

If you own land, manage a development, or work on a utility extension near a rail line, this guide walks through what pipeline engineering for railroad crossings actually involves.

Huntsville has seen fast growth on its edges, and a lot of that growth sits near existing rail lines that once served the area’s industrial sites. That mix of new development and old rail infrastructure means more pipeline routes will need to cross a track at some point. Knowing what that process looks like early can save a project weeks of rework later.

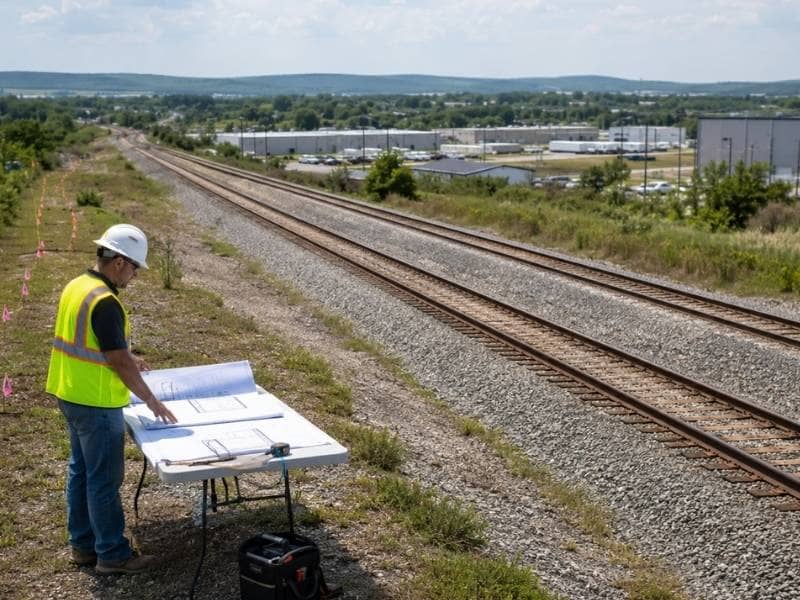

Define the Crossing Corridor Before Selecting a Pipeline Route

Before a route gets locked in, someone needs to map the full picture. That means finding:

• The railroad right-of-way boundaries
• The exact track location
• Any easements already in place
• Existing utilities near the crossing point
• The proposed pipeline alignment

A route that looks simple on a site plan can turn into a problem once you check railroad property limits and crossing rules. A pipeline path might need to shift ten or twenty feet just to stay clear of a signal box or a drainage structure the railroad owns. Checking the corridor first saves a redesign later.

This step also tells you who you’ll actually be talking to. Some rail corridors are owned outright by a single railroad. Others involve a mix of ownership, a lease, or a shared easement with another utility. Knowing that up front tells the design team who to contact and what kind of agreement the project will need down the line.

Match the Pipeline Profile to Track-Support Conditions

The pipeline has to sit at a safe depth below the rail bed. Engineers look at the vertical space between the pipe and the track structure, plus the soil and ballast conditions holding the track in place.

This isn’t just a depth number pulled from a chart. Ground conditions change from mile to mile. Sandy soil near a creek bed behaves differently than compacted fill under a rail yard. The design has to protect the track while still letting the pipeline reach its connection points on the other side.

Around Huntsville, soil conditions can shift quickly between rocky ground near the foothills and softer soil closer to the creeks and floodplains. A pipeline profile that works fine on one side of a property line may need a different depth or support plan just a short distance away. That’s why a site-specific check matters more than a standard rule of thumb.

Choose a Crossing Method That Limits Track Disturbance

There’s more than one way to get a pipe under a track, and they’re not interchangeable.

• Open cut excavation works where the railroad allows a short track closure or shoring plan.
• Boring pushes the pipe or casing through the ground without disturbing the surface above.
• Other trenchless methods may fit tighter sites or higher-traffic rail lines.

The right choice depends on pipe size and material, soil type, nearby utilities, and how much the railroad will allow train traffic to be interrupted. Picking a method early, before construction pricing gets locked in, keeps the budget and schedule realistic.

Boring is often the preferred choice near active rail lines because it avoids a track closure altogether. But boring isn’t automatically the cheaper option once you factor in equipment, pit setup, and soil testing. A short, honest comparison of methods, done before bids go out, gives a property owner or developer a real number to plan around instead of a guess.

Coordinate Casing, Carrier Pipe, and Access Details

Many railroads want a protective casing around the actual pipe, called the carrier pipe. Some don’t, depending on the pipeline type and the railroad’s own rules.

These requirements are project-specific. A plan should clearly show:

• The carrier pipe location and material
• Any casing or protective sleeve
• Vent locations, if required
• Access points for future inspection or repair

Skipping this level of detail is one of the most common reasons a railroad reviewer sends a plan back for changes.

Future maintenance matters here too. If a pipeline ever needs a repair years down the line, the crew doing that work needs a clear record of where the casing ends and the carrier pipe begins, and where they can safely access the line without disturbing the track above it. Building that clarity into the design now avoids a guessing game later.

Build Railroad Review Time Into the Utility Extension Schedule

Railroad crossings almost always need a separate review process, apart from city or county development approval. That review can include a formal application, technical drawings, insurance requirements, a crossing agreement, and coordination for the actual construction window.

None of that happens overnight. A railroad’s engineering department may take weeks to respond, and construction access often has to be scheduled around train traffic. Building this time into the project schedule from the start keeps a growing utility network from hitting a late, costly route change.

For a property owner or developer working on a tight closing date or a construction deadline, this is often the step that gets missed. A city permit might come through in a matter of days. A railroad crossing agreement rarely moves that fast. Flagging the crossing early, even before final design, gives the review time a fair place in the overall project timeline instead of becoming a surprise near the end.
