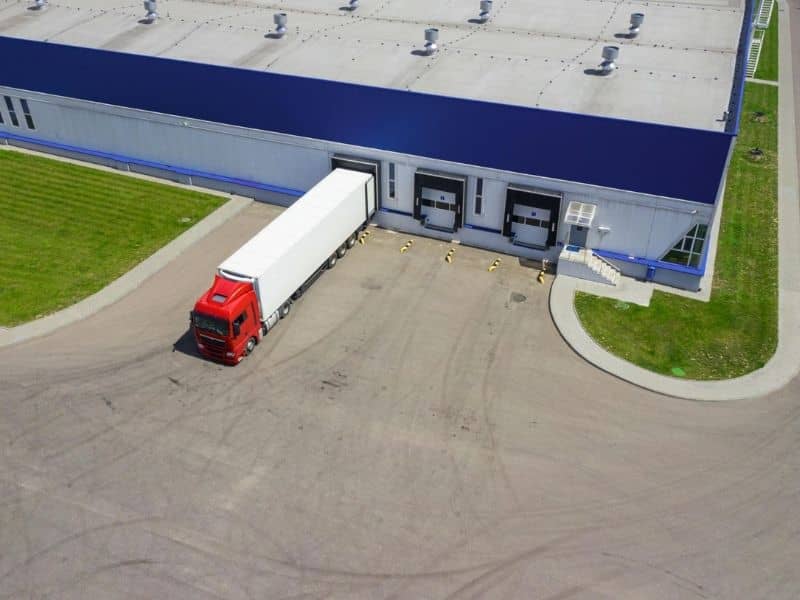

A truck that looks like it fits on paper can still get stuck at a real corner. That gap is why a roadway engineer studies truck turning before construction starts. The check looks at how the whole vehicle moves through a turn, not just how much pavement sits on the plan. For a plant or a warehouse, that one detail can decide whether trucks get in and out without a fight.

Why Truck Turning Needs Its Own Engineering Check

A car and a semi truck do not turn the same way. A car is short, so its four wheels stay close to one path. A truck tractor pulls a long trailer behind it, and that trailer swings along its own path. A roadway engineer cannot use car rules to judge whether a truck can make the turn.

Three parts of the truck move in three different ways during a turn. The front axle follows the widest arc because the driver steers it. The trailer wheels cut inside that arc and follow a tighter line. The rear overhang, which is the back end of the trailer, can swing out past the tires and reach beyond the paved area.

That is why a layout can look roomy on a drawing and still trap a truck at the corner. Open space in the middle of a lot does not help if the trailer clips a curb or the rear end swings into a wall. This check is only about the shape of the turn, not about traffic or how cars move through the site.

Start With the Actual Truck Configuration

The first thing a roadway engineer asks is simple. What kind of truck will actually use this site? A short delivery van turns in a tight space with ease, while a full tractor-trailer needs far more room. The two do not share the same limits.

AASHTO, the group that sets U.S. road design guides, sorts trucks by size. A single-unit truck like a local delivery vehicle runs about 30 feet long. The largest common semi, the WB-67, has a 67-foot wheelbase and runs close to 74 feet overall. Trailer length, wheelbase, axle spacing and total width all change how the truck swings through a turn.

Designing around a vague, generic truck gives a false picture. A plan built for a small box truck can fail the day a 74-foot rig shows up at the gate. So the engineer starts with the real vehicle, then works out the space it needs.

Reading the Trailer’s Off-Tracking Through a Turn

Off-tracking is the reason trucks need extra care. It means the rear wheels do not follow the front wheels through a turn. As the tractor rounds a corner, the trailer wheels track inside that curve and cut the corner short.

Because of this, the inside edge of the turn is often the trouble spot. The tractor may clear the corner fine while the trailer wheels ride up over a curb or across an island. A roadway engineer traces the whole swept path, both the outer edge and that tight inner edge, to see what the truck really touches.

The inside line matters most near fixed things the truck can hit. Curbs, raised islands, sign poles, light poles, gates, loading docks and building corners all sit in danger if the trailer cuts too close. Engineers often model this with turning software so they can see the swept path before crews pour a single curb.

Checking the Tightest Point in the Maneuver

The size of the paved area is not the whole story. One tight spot in the middle of the turn can stop a truck even when the rest of the space looks generous. That single pinch point is what a roadway engineer hunts for.

A turn is really one long move, not three separate ones. The truck enters, swings through the arc and pulls out, and all three parts have to work together. If the entry angle is wrong, the driver can end up boxed in halfway through with no clean way to finish. On tight sites, a driver may need a multi-point turn, backing up and pulling forward more than once to get around.

To avoid that, the engineer tests several truck paths on the same layout. One path might clip a corner. Another might need a wider approach. The goal is one clean path the truck can drive every time, then a corner built to fit it.

Planning Truck Turns Around Real Operating Conditions

A clean turn on an empty lot means little if the lot is never empty. Real sites have parked trailers, delivery activity, gates and security booths sitting right where a truck needs room. A roadway engineer plans the turn around the site as it will really run, not as a blank drawing.

Daily work adds more to think about. Trucks may load and unload along the same path they turn on. A parked trailer, a swing gate or a stack of pallets can block the exact space the swept path needs. The turn has to still work when the yard is busy, not only when it sits open.

Reversing is another point. A little backing is normal, but a site that forces long, repeated backups slows everything down and raises the risk of a hit. Places like Huntsville’s new SPX cooling-equipment plant and Blue Origin’s thruster buildings will see heavy trucks daily, so the turning plan has to hold up under real use.

Frequently Asked Questions

What does a roadway engineer check when evaluating truck turning areas?

A roadway engineer looks at the truck’s full turning path, its off-tracking, the clearance around fixed features and whether the truck can finish the move without hitting anything. Entry, turn and exit all count as one action.

Why can a truck turn differently from a passenger vehicle?

A truck has a long wheelbase and a trailer that bends at the hitch, so its back wheels swing along a different line than the front. A car is short and stiff, so all four wheels stay near one path. That gap in shape changes how much room the truck needs.

What is truck off-tracking?

Off-tracking is when the back of a truck does not trace the same path as the front through a turn. The rear wheels cut inside the front wheels, so the trailer sweeps closer to the inside of the corner.
