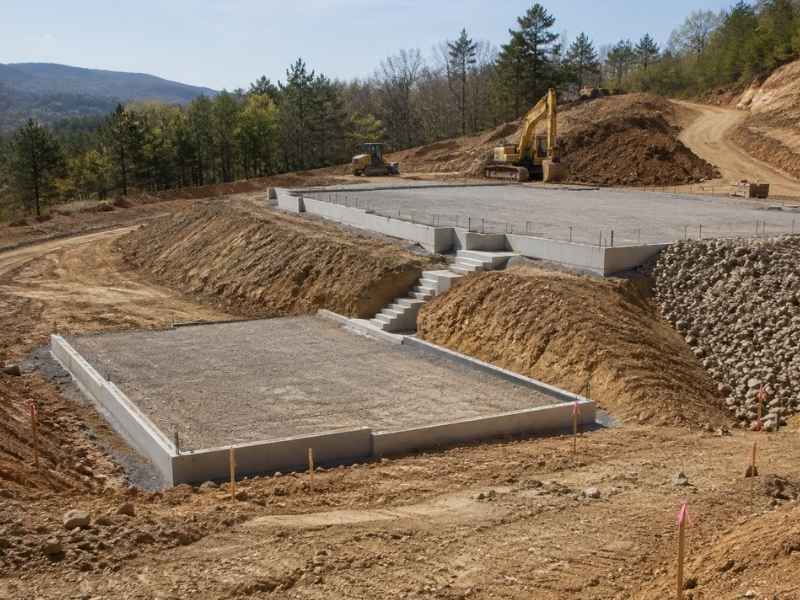

A split-level building doesn’t sit on one flat pad. It sits on two, each one set at its own height, and a grading plan is what makes those two pads work together instead of fighting each other. Get this wrong, and a crew ends up adjusting the ground by hand after grading is already done. Get it right, and both levels are ready to build on the day construction starts.

Set Separate Pad Elevations Before Connecting the Two Building Levels

A split-level building pad needs two elevations, not one. The upper pad and the lower pad each get their own set height, and those heights have to work with the structure planned above them.

This isn’t something engineers guess at. They look at the building design first, then set each pad elevation so it lines up with the floor level it’s meant to support. If the pad and the floor don’t match closely enough, someone ends up adjusting the ground by hand once construction starts.

Setting these elevations early avoids that problem completely. Both parts of the pad are ready to build on from day one, without extra digging or filling once crews show up.

Design the Grade Transition Between Upper and Lower Pads

Somewhere between the two pads, the ground has to change height. That spot is the grade transition, and where it sits matters just as much as how steep it is.

Placed in the wrong spot, a transition can cut right through the building footprint, or land somewhere that leaves no usable ground for foundation work. Placed well, it stays clear of the structure entirely and gives crews enough flat space to actually build.

Engineers think through this transition early, before foundation work starts. That way, the change in height supports the building instead of getting in its way once construction is underway.

Coordinate Split-Level Pads With Stepped Foundations

Many split-level buildings use a stepped foundation, one that changes height in sections to match the building above it. That foundation only works if the grading elevations line up with each step correctly.

If the grading plan and the foundation concept aren’t coordinated early, the mismatch shows up right where the building changes elevation. That’s often the hardest spot to fix later, since it usually means adjusting both the ground and the foundation at the same time.

Getting engineers and the foundation team talking early avoids this. Each step in the foundation gets a pad elevation that actually matches it, instead of one that was set without the foundation in mind.

Manage Earthwork at the Pad Elevation Break

The spot where the pad elevations change is usually where the most earthwork happens. Cutting into the ground and adding fill both tend to concentrate right around that break, more than anywhere else on the site.

A grading plan needs to spell out exactly what happens there. Where does material get removed? Where does the fill go? How does that transition fit into the overall shape of the pad? Leaving these questions unanswered on paper just pushes the decisions onto the crew in the field, usually at the worst possible time.

Defining this clearly ahead of time keeps the earthwork organized. Crews know exactly what to expect at the elevation break instead of figuring it out as they go.

Preserve Working Space Around Both Pad Levels

Each pad level needs room around it, not just the flat surface itself. Crews need space to dig, place foundation materials, move equipment and eventually finish exterior work once the structure goes up.

The elevation break between the two levels can eat into that space if it sits too close to the building. A transition that crowds the structure leaves less room for excavation equipment to maneuver, and less room for crews to work safely around the foundation.

Thinking through this clearance during grading design, not after, keeps both pad levels usable for the entire construction process. That’s easy to overlook on paper, but it shows up fast once equipment shows up on site.

Frequently Asked Questions

What is a split-level building pad?

A split-level building pad is a prepared building area with two or more planned elevations. Each elevation lines up with a different part or floor level of the structure above it.

Why does a split-level pad need more grading coordination?

Multiple pad elevations create more transitions between the site, the foundation and the surrounding grades. All of those transitions need to work together before construction starts.

How does a grading plan show the change between pad levels?

A grading plan uses spot elevations, contours, grade breaks and slopes to communicate exactly where one pad elevation ends and the next one begins.

Can a split-level building pad reduce excavation on a sloped site?

Following the existing terrain more closely can reduce some earthwork in certain designs. Even so, the actual cut-and-fill amount depends on the site, the building layout and the engineering design behind it.

Do split-level building pads always require retaining walls?

No, they don’t automatically require one. Whether a retaining wall is needed depends on the elevation difference between pads, the horizontal space available, the proposed slopes, the soil conditions and the overall site and structural design.
