Huntsville sits on a shelf of limestone. Drive across Madison County and you’ll notice thin soil sitting right on top of hard rock in many neighborhoods. This isn’t just a fact for geology buffs. It changes how engineers design detention ponds.

A pond that works fine in soft clay soil might hit solid rock three or four feet down here. That changes the shape, the depth, and the cost of a stormwater plan. If you own land, build homes, or manage a development project, you need to plan for this rock before anyone breaks ground.

Why North Alabama Limestone Conditions Can Complicate Detention Pond Design

Detention ponds work by holding rainwater and letting it out slowly. To hold enough water, a pond usually needs some depth. Shallow bedrock gets in the way of that.

North Alabama sits on karst terrain. That means limestone bedrock, often full of cracks, gaps, and old dissolved channels. Rock depth can shift a lot across one lot. One corner might have six feet of soil. Another corner might have rock at two feet.

Karst rock also raises another problem: water can slip into cracks in the stone and disappear underground instead of draining the way the design intended. A pond dug straight into fractured limestone might leak, or it might sit above a hidden void. Neither one is good news for a property owner or a builder.

Because of this, pond design here can’t follow a standard depth chart from another state. Every site needs its own read on the rock before anyone draws a plan.

Evaluating Excavation Limits Before Building a Stormwater Storage Area

Before a pond gets designed on paper, someone needs to know what’s actually in the ground. That means geotechnical borings.

A geotechnical engineer drills several test holes across the planned pond footprint. Each boring shows how deep the soil goes before hitting rock, often called “refusal depth.” For a small pond, three to five borings might be enough. Larger sites need more, especially where the ground surface rises and falls.

These borings get mapped out so the design team can see where rock sits high and where it sits low. That map becomes the starting point for the whole pond layout. It tells the engineer how deep they can realistically dig without needing rock removal equipment, and where the pond might need to shift to avoid the shallowest rock.

Skipping this step is one of the most common and costly mistakes on a site. A pond designed on paper without rock data can turn into a change order once construction crews hit stone they didn’t expect.

Adapting Detention Pond Design When Limestone Reduces Available Depth

When rock sits close to the surface, going deeper isn’t always an option. So the design has to change shape instead.

One common fix is going wider instead of deeper. A shallower pond with a bigger surface area can hold the same volume of water as a deeper, smaller one. This takes up more land, so it works best on sites with room to spare.

Another option is splitting storage into multiple cells. Instead of one large pond, the design uses two or three smaller basins spread across the property, each sized to fit the soil depth available in that spot.

Underground detention is a third path. Instead of an open pond, water gets stored in buried pipes, chambers, or vaults set just below the surface, above the rock line. This works well on tight sites where surface space is limited, though it costs more to build than an open pond.

Some projects mix these approaches: a shallow surface pond paired with underground storage to make up the rest of the required volume. The right mix depends on the site, the budget, and how much land is available.

Construction Considerations When Pond Excavation Encounters Rock Layers

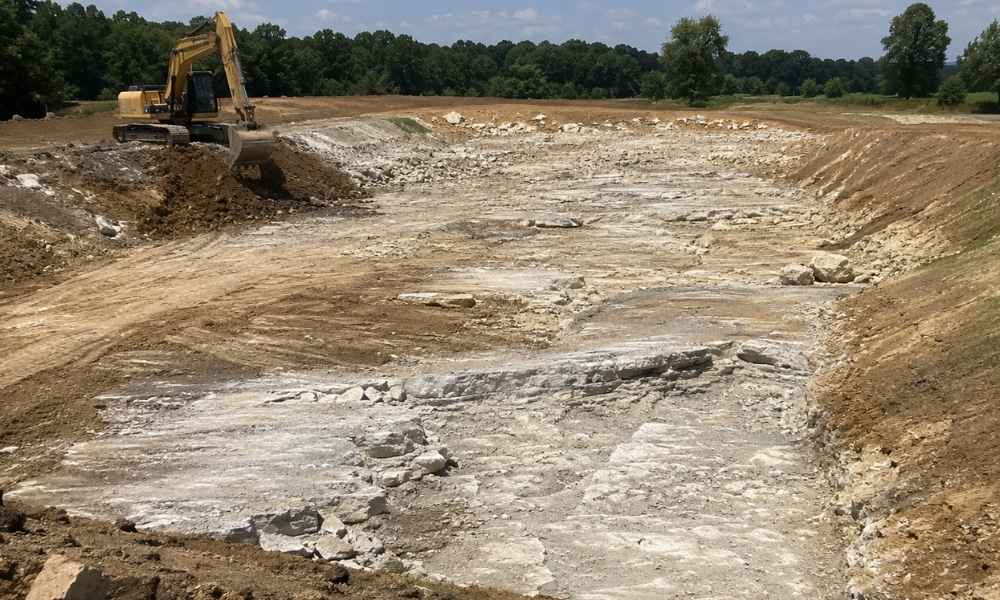

Once digging starts and crews hit rock, the job changes. Regular excavators can move soil fast, but they slow down a lot once they reach solid limestone.

Rock removal usually means one of a few methods: hydraulic hammers mounted on excavators, rock saws, or in some cases, blasting. Blasting moves rock fast but needs permits, notice to neighbors, and strict safety planning, especially in a growing city like Huntsville where new rooftops sit close to old job sites.

Rock excavation also takes more time and more money than soil excavation. Contractors should build this into their schedule and their bid from day one, not treat it as a surprise once the machines hit stone.

There’s also the matter of what to do with the rock once it’s out of the ground. Large stone spoils need to go somewhere, either hauled off site or reused as fill or landscaping material elsewhere on the property. Planning for this ahead of time keeps a job from stalling.

Erosion control matters here too. Rock excavation often takes longer than planned, which means exposed soil and stone sit open to weather for a longer stretch. Silt fencing, temporary basins, and other controls need to hold up through the extra time.

Planning Detention Pond Locations Around North Alabama’s Unique Terrain

The best way to deal with shallow rock is to plan around it early, before a site plan is locked in.

That starts with geotechnical work done before the pond location gets fixed on paper. If borings show rock sitting high in one area of a property and lower in another, the pond can often move to the deeper spot rather than fighting the rock in place.

Known karst features matter too. Areas with a history of sinkholes need extra care, since detention water sitting near a weak spot in the rock can make a small sinkhole worse over time. A geotechnical engineer can flag these areas before design work goes far.

Coordination with the City of Huntsville or the relevant county stormwater office also needs to happen early. Local review teams have seen plenty of limestone sites and often know which parts of a parcel tend to give builders trouble. Bringing them into the conversation early, rather than after a design is finished, tends to save time later.

Rock under the ground doesn’t have to stop a project. It just means the plan has to match what’s actually there. A pond designed around real site conditions holds water when it’s supposed to, drains when it’s supposed to, and doesn’t turn into a costly surprise once the equipment shows up.
